Empire Gauge Wheels
Assist Draper Header Flotation
Easy to Install
Minimize your Harvest Time
Save on Cutter Bar Wear
Quick Height Adjustment for Optimal Cutting
Prevent Costly Repairs
Empire offers a variety of Gauge Wheel Kits to fit many Draper Header models from MacDon, HoneyBee and John Deere, to Massey, Versatile and International brands.
Remove those Skid Plates that wear out fast and replace them with
EMPIRE Gauge Wheels
Available MODELS
U-GW-HB20
Draper Header Fits
HoneyBee – GrainBelt, CNH #HB36
CASE IH – DH212, DH252, DH302, DH 362
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual

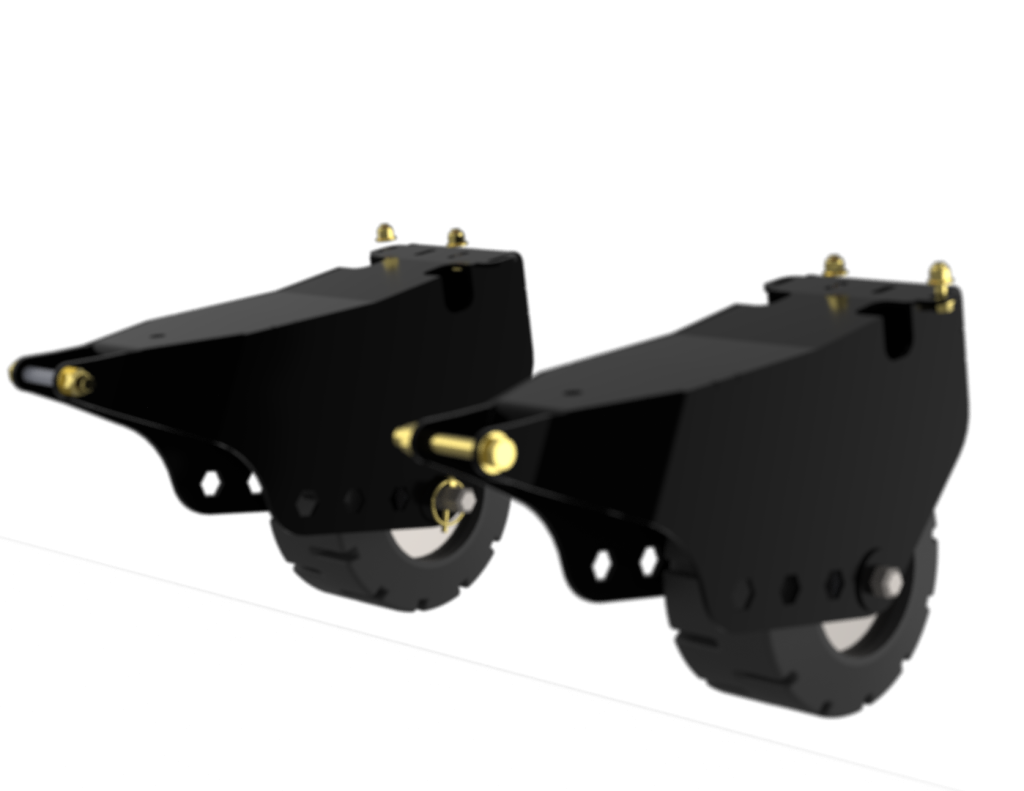

U-GW-HBCNH
Draper Header Fits
HoneyBee/CASE – DH03
New Holland – 4000
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-JD31
Draper Header Fits
John Deere – 900 D Models
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-JD600
Draper Header Fits
John Deere – 600 D Models
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-MD60
Draper Header Fits
MacDon – D50, D60, FD70, FD75, FD140, FD145
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-MD96
Draper Header Fits
Macdon – 960, 962, 963
CASE IH – 1042
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-MD97
Draper Header Fits
Macdon – 972, 973, 974
CASE IH – 1052
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-MDHH
Draper Header Fits
Macdon – Harvest Header (Pre 1992)
John Deere – 2360 [Swather Header]
Massey – 885 [Swather Header]
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-MF30
Draper Header Fits
Massey – 220, 5000, 5200
Gleaner – 600
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
U-GW-IH20
Draper Header Fits
International – 8100, 8820
Kit includes Powder Coated Steel Frames, 9″ Vulcanized Rubber Wheels with Hex Bearings, Mounting Hardware, Standard Hex Pins, & Owner’s Manual
REPLACEMENT PARTS
U-GW-1W
One Wheel with Hex Bearings
9″ Solid Vulcanized Rubber Wheel
5″ Flat Face Traction
Painted Steel Construction
7/8″ Hex Bearings Included
U-GW-2W
Two Wheels with Hex Bearings
9″ Solid Vulcanized Rubber Wheel
5″ Flat Face Traction
Painted Steel Construction
7/8″ Hex Bearings Included
U-GW-P-4.1
Standard Hex Pin
Fits most models of Gauge Wheel Frames
7/8″ Steel Hex Shaft
Painted Steel Construction
Lynch Pin Included
U-GW-P-3.1
JD Hex Pin
Fits with U-GW-JD31 Frames
7/8″ Steel Hex Shaft
Painted Steel Construction
Lynch Pin Included
205KRR2
Hex Wheel Bearing
7/8″ Hex Bearing
Radial Ball Bearings
DYN 66451
Lynch Pin
Gold Coloured
1/4″ x 1-7/16″x 1-3/4″
Fits all Empire Hex Pins
Secures Hex Pins and Wheels to your EMPIRE Gauge Wheel Frames
